Maximum level of RF EME from this base station

The maximum level of RF EME from this base station (full power) determined from measurements at locations around this site was 0.051% of the ARPANSA Standard limit for public exposure.

Highest level of RF EME actually measured

The highest level of RF EME from all nearby base stations actually measured at a location near this site was 0.025% of the ARPANSA Standard limit for public exposure.

The Environmental EME Report for this site (dated 10/07/2009) lists the maximum EME level as 0.44% of the ARPANSA Standard limit for public exposure.

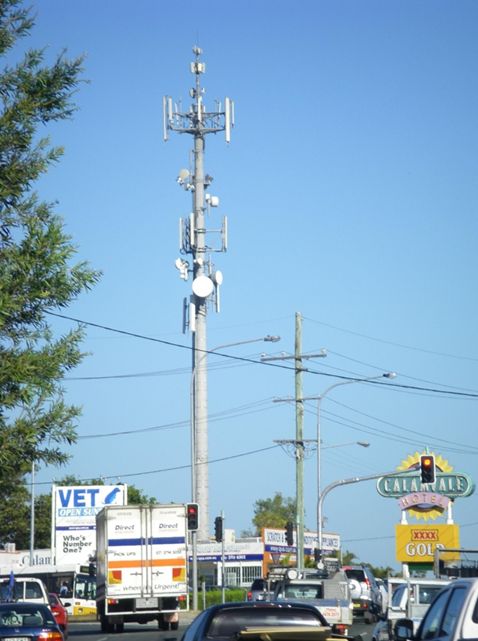

Base station address: Corner of Beaudesert & Compton Roads, Calamvale QLD
(See in Google maps). These measurements were taken on Thursday 29 and Friday 30 October 2009.

Details of this installation are available by visiting the
Mobile Carriers Forum (MCF) - Radio Frequency National Site Archive website. Login as a guest and search for site number 4116003.

Detailed Results: RF EME from this base station

This table lists the range of RF EME values from the services present at this site measured at the location with the highest average value. An explanation of this table is here.

Operator/Service	Location	Low Power [mW/m2]	Full Power [mW/m2]	Limit [mW/m2]	Percentage of Limit[%]
3GIS UMTS	3	0.019 - 0.043	0.278 - 0.627	10000	0.003 - 0.006
Optus GSM900	2	0.092 - 0.200	0.369 - 0.801	4500	0.008 - 0.018
Optus GSM1800	4	0.044 - 0.076	0.175 - 0.305	9000	0.002 - 0.003
Optus UMTS	3	0.030 - 0.063	0.295 - 0.633	10000	0.003 - 0.006
Vodafone GSM900	2	0.032 - 0.103	0.127 - 0.410	4500	0.003 - 0.009
Vodafone GSM1800	5	0.344 - 0.961	1.032 - 2.883	9000	0.011 - 0.032
Vodafone UMTS	3	0.006 - 0.022	0.064 - 0.217	10000	0.001 - 0.002
Combined	5	0.492 - 1.194	1.920 - 4.036		0.024 - 0.051



Detailed Results: RF EME from all nearby base stations

This table lists the range of RF EME values for each of the mobile phone downlink bands measured at location 1. An explanation of this table is here.

Frequency Band	Services	Measured [mW/m2]	Limit [mW/m2]	Percentage of Limit[%]
870 - 890 MHz	WCDMA850	0.008 - 0.016	4250	< 0.001
935 - 960 MHz	GSM900	0.239 - 0.470	4500	0.005 - 0.010
1805 - 1880 MHz	GSM1800	0.401 - 1.458	9000	0.004 - 0.016
2110 - 2170 MHz	UMTS2100	0.051 - 0.186	10000	0.001 - 0.002
Combined		1.061 - 1.829		0.015 - 0.025

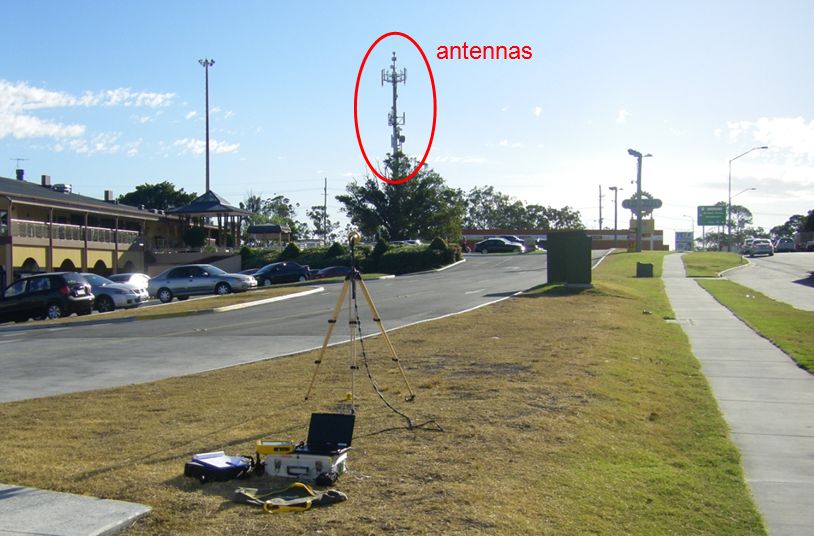

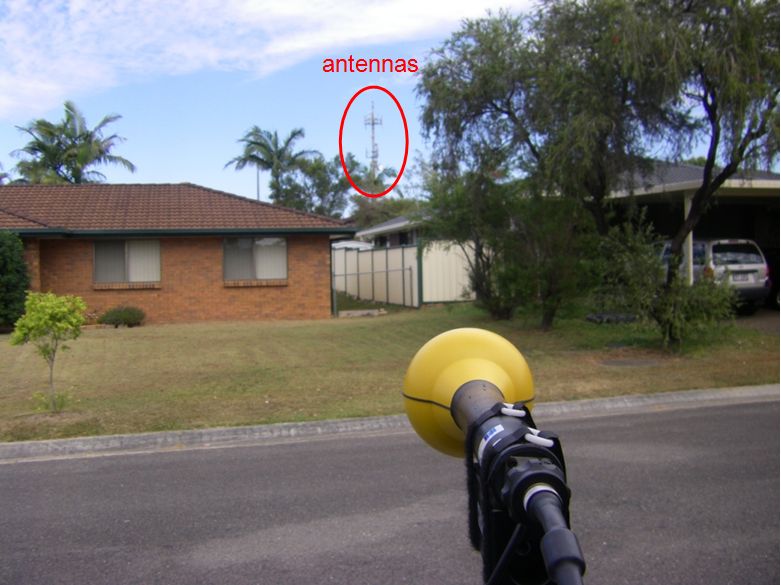

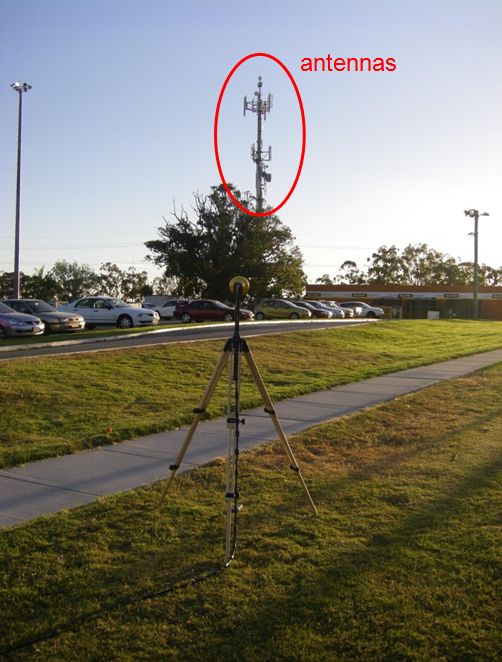

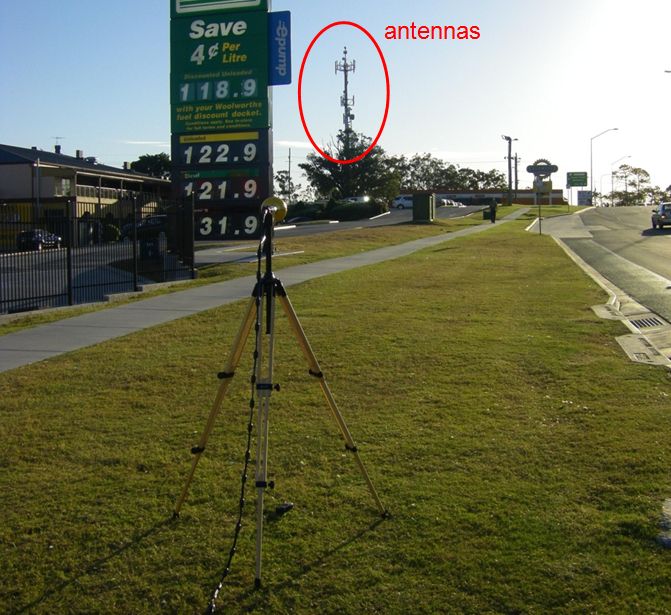

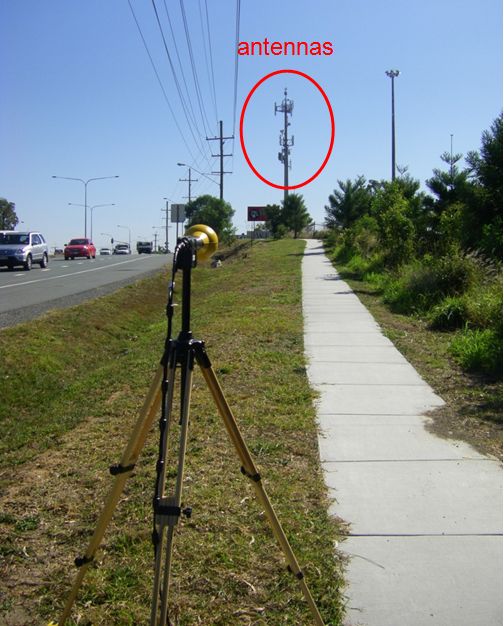

Measurement locations - Click to enlarge
