Wynnum North QLD

Maximum level of RF EME from this base station

The maximum level of RF EME from this base station (full power) determined from measurements at locations around this site was 0.065% of the ARPANSA Standard limit for public exposure.

Highest level of RF EME actually measured

The highest level of RF EME from all nearby base stations actually measured at a location near this site was 0.054% of the ARPANSA Standard limit for public exposure.

The Environmental EME Report for this site (dated 13/05/2009) lists the maximum EME level as 0.58% of the ARPANSA Standard limit for public exposure.

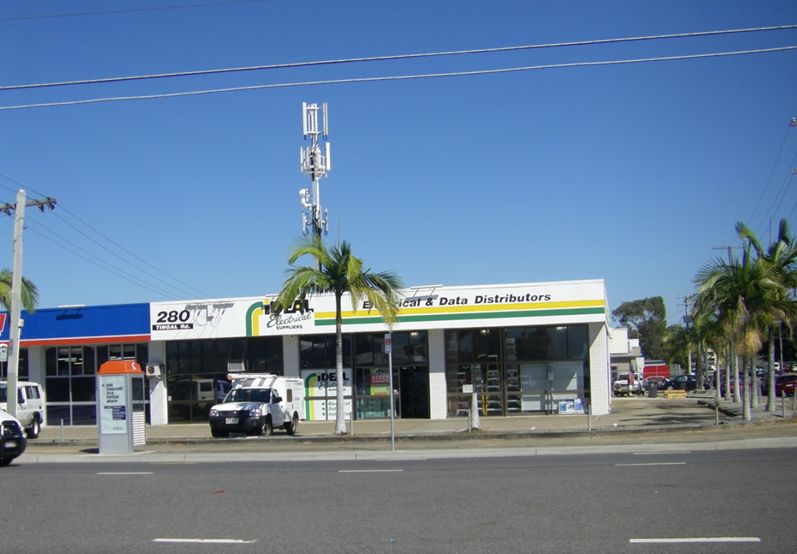

Base station address: 14 Mungala Street, Wynnum North QLD
(See in Google maps). These measurements were taken on Friday 30 October 2009.

Details of this installation are available by visiting the
Mobile Carriers Forum (MCF) - Radio Frequency National Site Archive website. Login as a guest and search for site number 4178007.

Detailed Results: RF EME from this base station

This table lists the range of RF EME values from the services present at this site measured at the location with the highest average value. An explanation of this table is here.

Operator/Service	Location	Low Power [mW/m²]	Full Power [mW/m²]	Limit [mW/m²]	Percentage of Limit[%]
3GIS UMTS	2	0.007 - 0.026	0.108 - 0.370	10000	0.001 - 0.004
Optus GSM900	1	0.297 - 0.852	0.594 - 1.703	4500	0.013 - 0.038
Optus UMTS	2	0.014 - 0.097	0.139 - 0.973	10000	0.001 - 0.010
Telstra WCDMA	2	0.068 - 0.109	0.740 - 1.193	4250	0.017 - 0.028
Vodafone UMTS	2	0.036 - 0.109	0.358 - 1.091	10000	0.004 - 0.011
Combined	2	0.295 - 0.661	2.288 - 3.995		0.037 - 0.065

Detailed Results: RF EME from all nearby base stations

This table lists the range of RF EME values for each of the mobile phone downlink bands measured at location 1. An explanation of this table is here.

Frequency Band	Services	Measured [mW/m²]	Limit [mW/m²]	Percentage of Limit[%]
870 - 890 MHz	WCDMA850	0.072 - 0.267	4250	0.002 - 0.006
935 - 960 MHz	GSM900	0.601 - 2.185	4500	0.013 - 0.049
1805 - 1880 MHz	GSM1800	0.001 - 0.001	9000	< 0.001
2110 - 2170 MHz	UMTS2100	0.139 - 0.326	10000	0.001 - 0.003
Combined		0.996 - 2.541		0.020 - 0.054
