Maximum level of RF EME from this base station

The maximum level of RF EME from this base station (full power) determined from measurements at locations around this site was less than 0.001% of the ARPANSA Standard limit for public exposure.

Highest level of RF EME actually measured

The highest level of RF EME from all nearby base stations actually measured at a location near this site was less than 0.001% of the ARPANSA Standard limit for public exposure.

The Environmental EME Report for this site (dated 14/07/2004) lists the maximum EME level as 0.0036% of the ARPANSA Standard limit for public exposure.

Base station address: 230 Howick Street, Bathurst NSW (See in Google maps). These measurements were taken on 23 and 24 October 2007

Details of this installation are available by visiting the
Mobile Carriers Forum (MCF) - Radio Frequency National Site Archive website. Login as a guest and search for site number 2795007.

Detailed Results: RF EME from this base station

This table lists the range of RF EME values from the services present at this site measured at the location with the highest average value. An explanation of this table is here.

Operator/Service	Location	Low Power [mW/m2]	Full Power [mW/m2]	Limit [mW/m2]	Percentage of Limit[%]
Vodafone GSM900	3	<0.001 - 0.007	0.002 - 0.020	4500	<0.001
Combined	3	<0.001 - 0.007	0.002 - 0.020		<0.001



Detailed Results: RF EME from all nearby base stations

This table lists the range of RF EME values for each of the mobile phone downlink bands measured at location 1. An explanation of this table is here.

Frequency Band	Services	Measured [mW/m2]	Limit [mW/m2]	Percentage of Limit[%]
870 - 890 MHz	CDMA & WCDMA	<0.001 - 0.002	4250	<0.001
935 - 960 MHz	GSM900	0.008 - 0.043	4500	<0.001
1805 - 1880 MHz	GSM1800	<0.001	9000	<0.001
2100 - 2170 MHz	UMTS	<0.001	10000	<0.001
Combined		0.008 - 0.045		<0.001

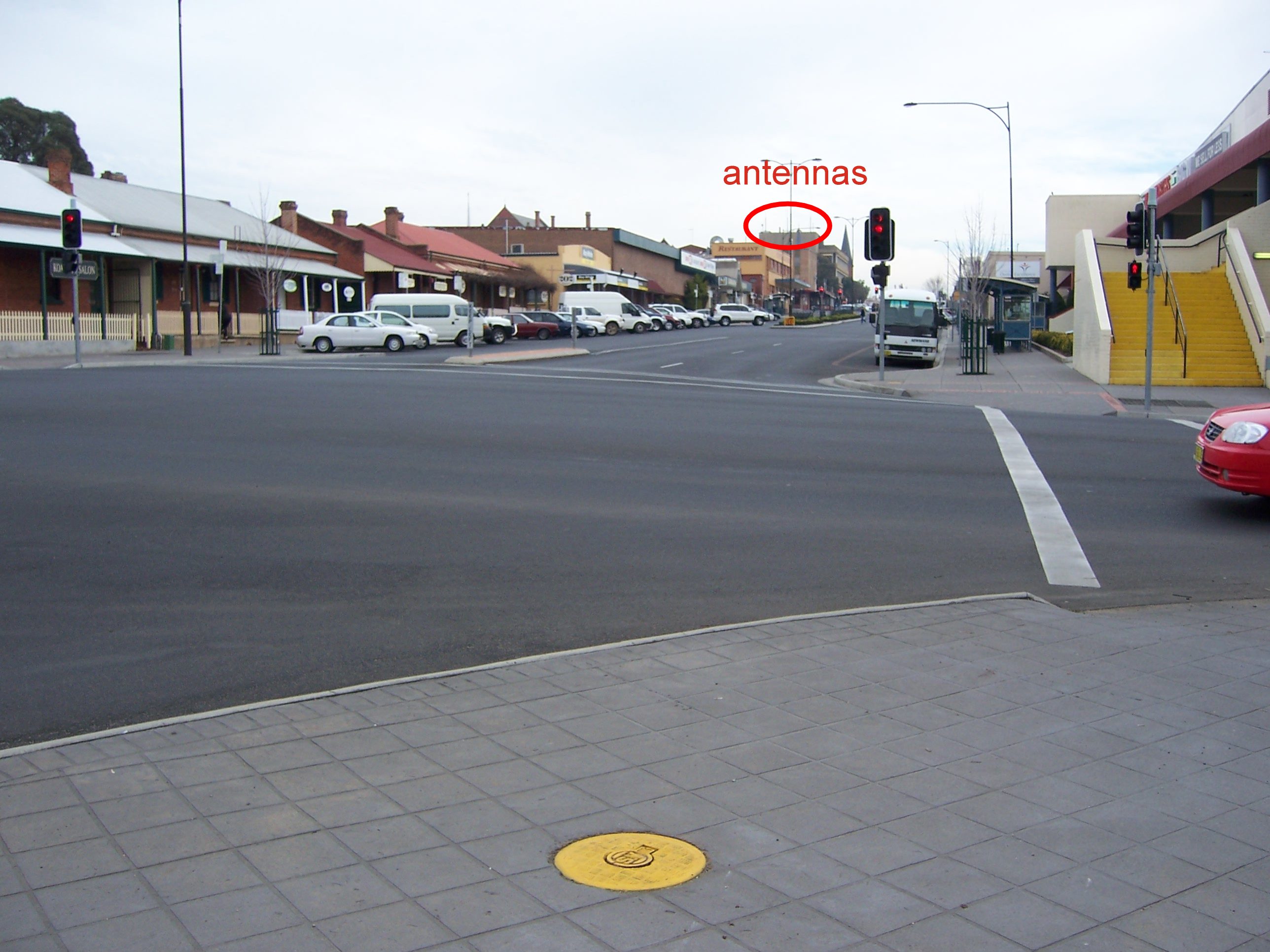

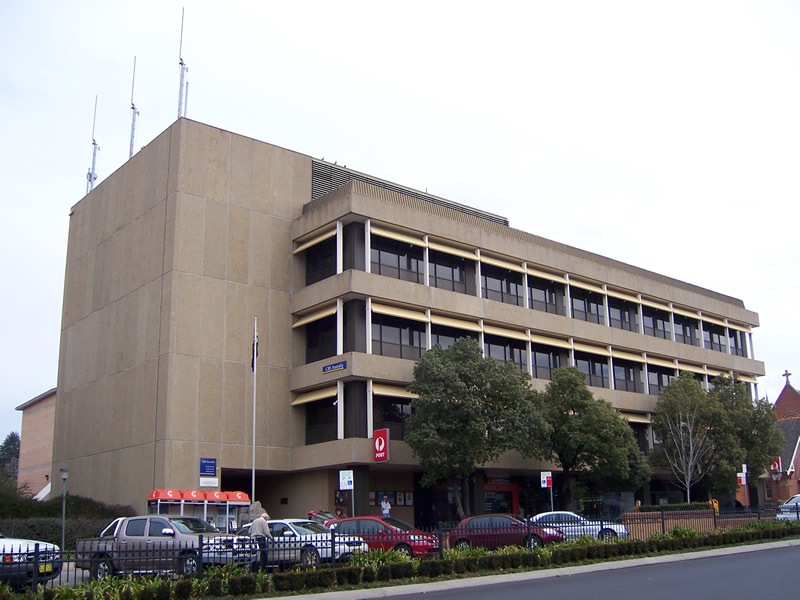

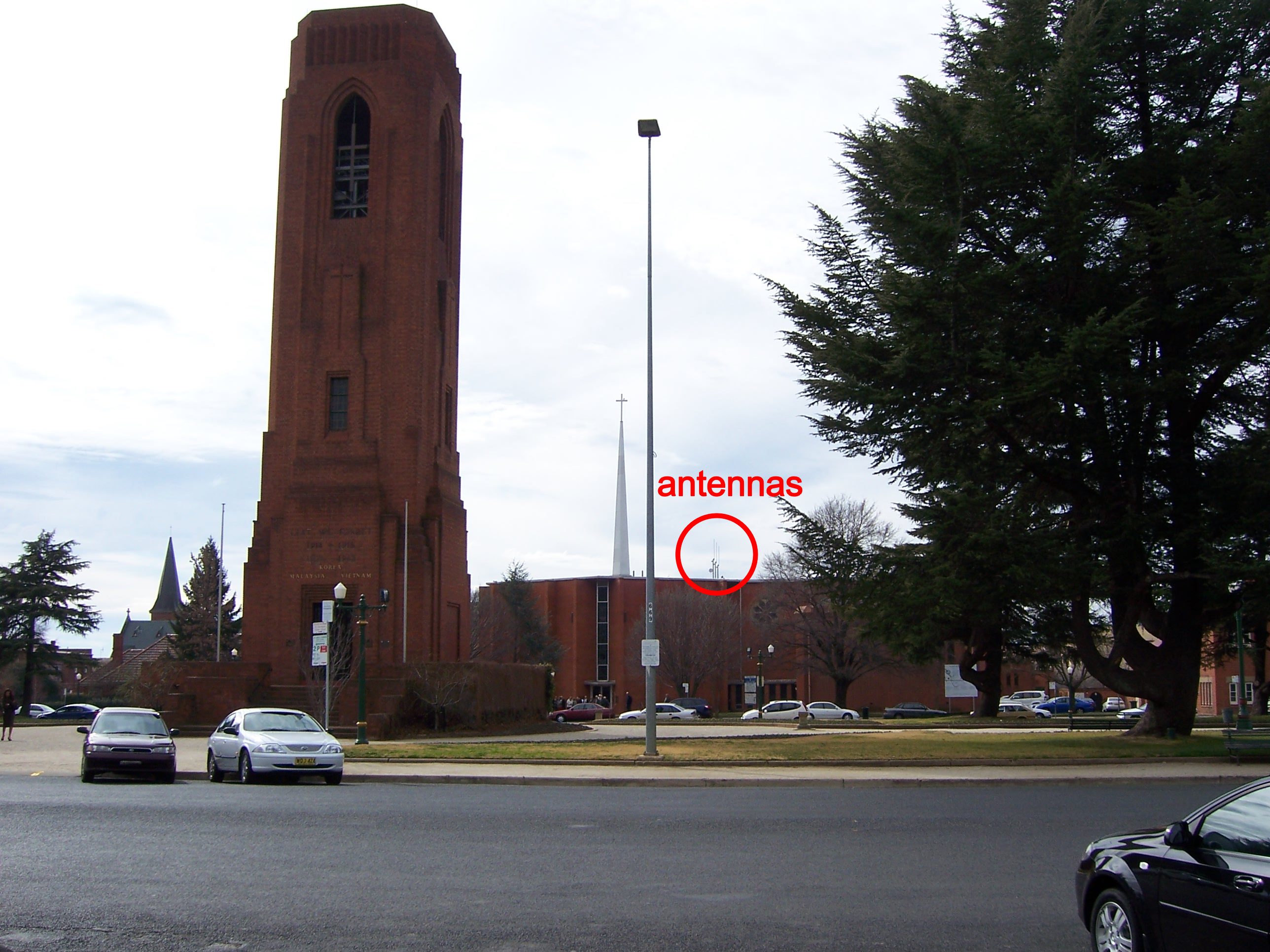

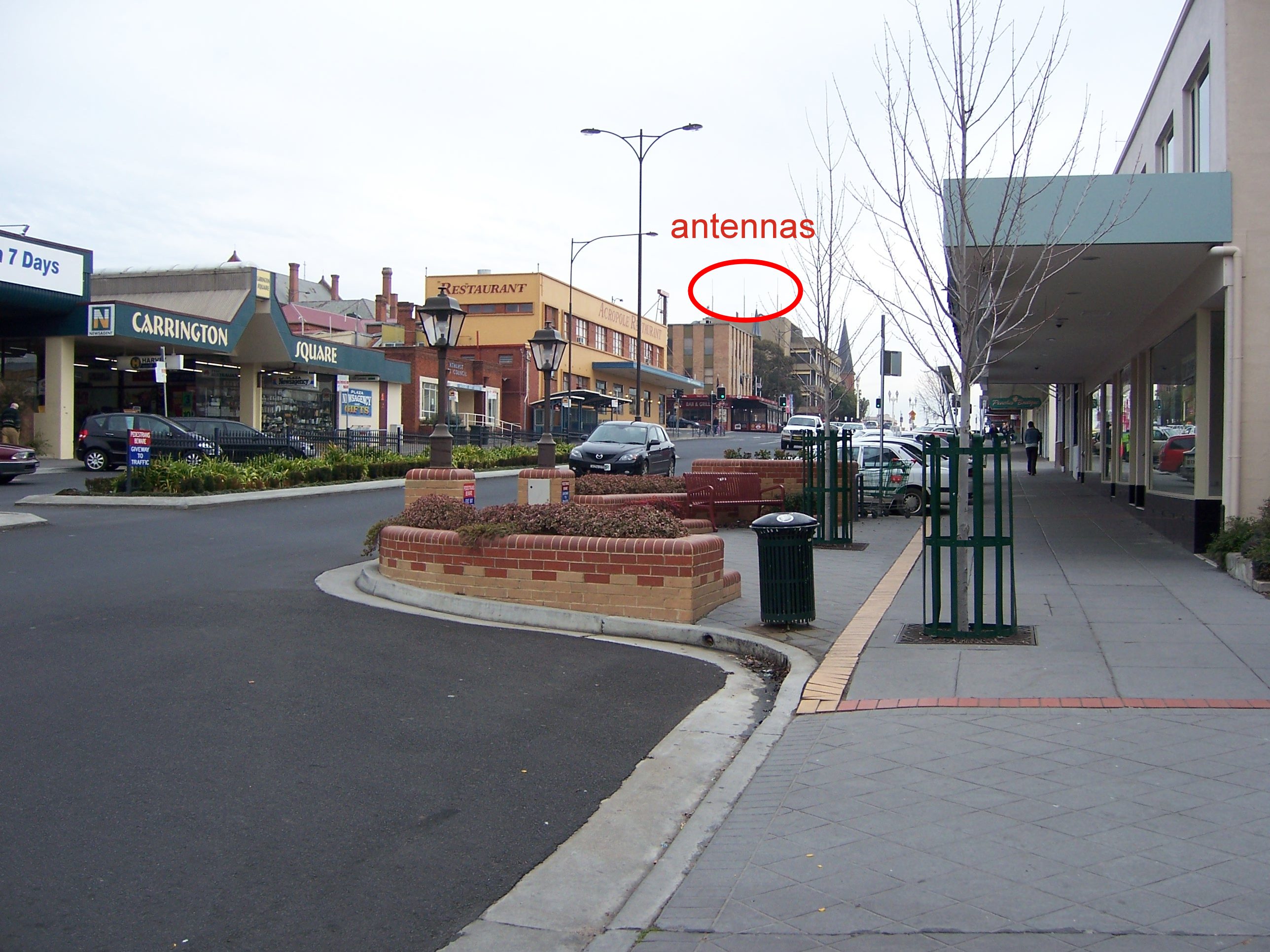

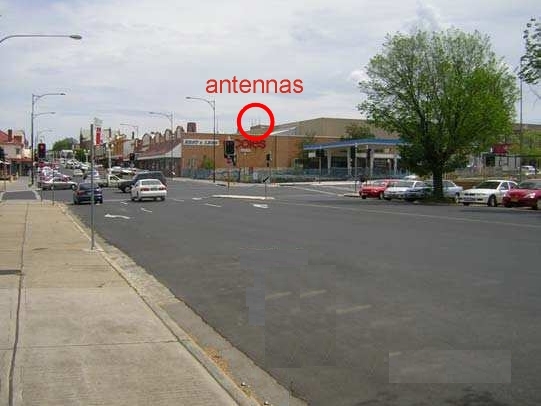

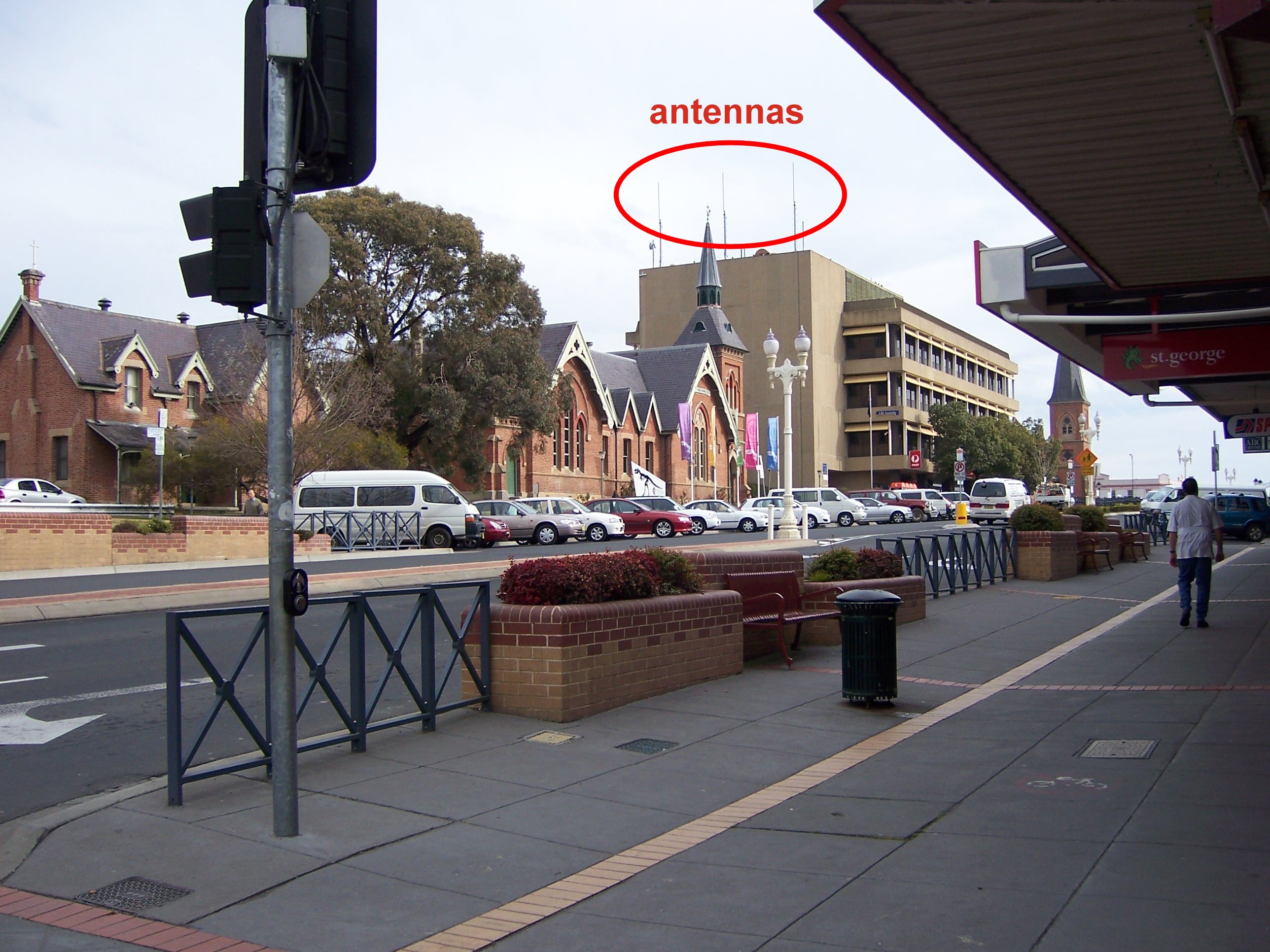

Measurement locations - Click to enlarge
