Maximum level of RF EME from this base station

The maximum level of RF EME from this base station (full power) determined from measurements at locations around this site was 0.890% of the ARPANSA Standard limit for public exposure.

Highest level of RF EME actually measured

The highest level of RF EME from all nearby base stations actually measured at a location near this site was 0.088% of the ARPANSA Standard limit for public exposure.

The Environmental EME Report for this site (dated 24/12/2008) lists the maximum EME level as 0.35% of the ARPANSA Standard limit for public exposure.

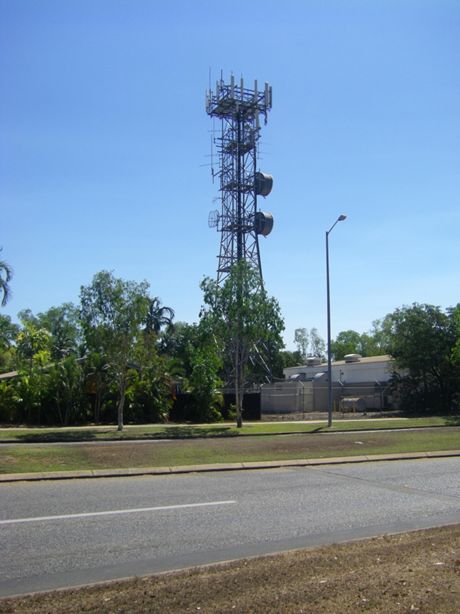

Base station address: 65 Chung Wah Terrace, Palmerston NT
(See in Google maps). These measurements were taken on Wednesday 14 October 2009.

Details of this installation are available by visiting the
Mobile Carriers Forum (MCF) - Radio Frequency National Site Archive website. Login as a guest and search for site number 0830001.

Detailed Results: RF EME from this base station

This table lists the range of RF EME values from the services present at this site measured at the location with the highest average value. An explanation of this table is here.

Operator/Service	Location	Low Power [mW/m2]	Full Power [mW/m2]	Limit [mW/m2]	Percentage of Limit[%]
Optus GSM900	1	0.054 - 0.370	0.108 - 0.740	4500	0.002 - 0.016
Optus UMTS	1	0.034 - 0.666	0.343 - 6.657	10000	0.003 - 0.067
Telstra WCDMA	1	0.446 - 3.334	4.894 - 36.560	4250	0.115 - 0.860
Telstra GSM900	5	0.046 - 0.154	0.095 - 0.316	4500	0.002 - 0.007
Telstra GSM1800	1	0.067 - 0.184	0.133 - 0.368	9000	0.001 - 0.004
Combined	1	0.975 - 3.896	7.187 - 38.961		0.144 - 0.890

Note: The reported values for the UMTS and WCDMA services in this table are over-estimates due to the measurement techniques used at this site. See footnote for more information.

Detailed Results: RF EME from all nearby base stations

This table lists the range of RF EME values for each of the mobile phone downlink bands measured at location 1. An explanation of this table is here.

Frequency Band	Services	Measured [mW/m2]	Limit [mW/m2]	Percentage of Limit[%]
870 - 890 MHz	WCDMA850	0.446 - 3.334	4250	0.010 - 0.078
935 - 960 MHz	GSM900	0.079 - 0.480	4500	0.002 - 0.011
1805 - 1880 MHz	GSM1800	0.080 - 0.202	9000	0.001 - 0.002
2110 - 2170 MHz	UMTS2100	0.036 - 0.667	10000	< 0.001 - 0.007
Combined		1.011 - 3.933		0.019 - 0.088

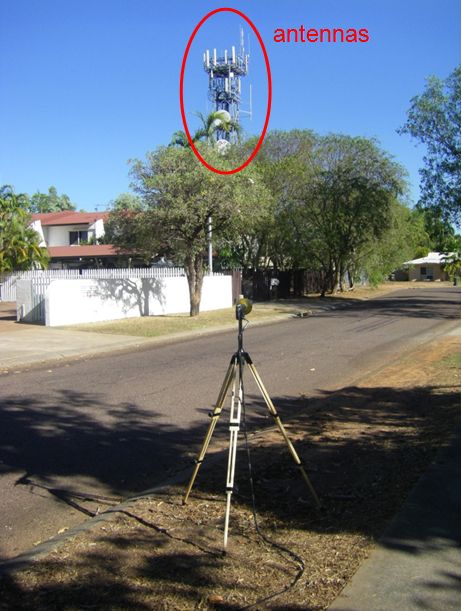

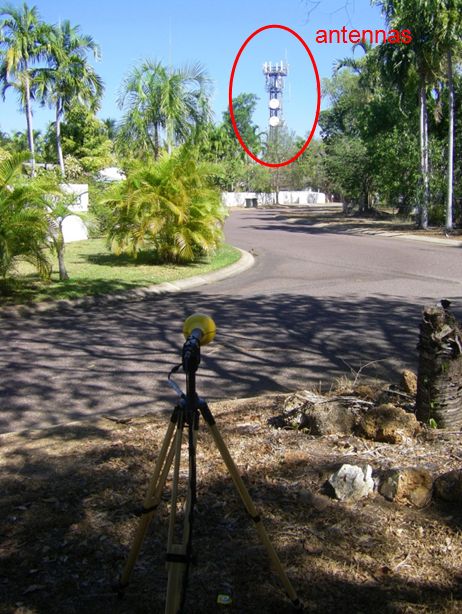

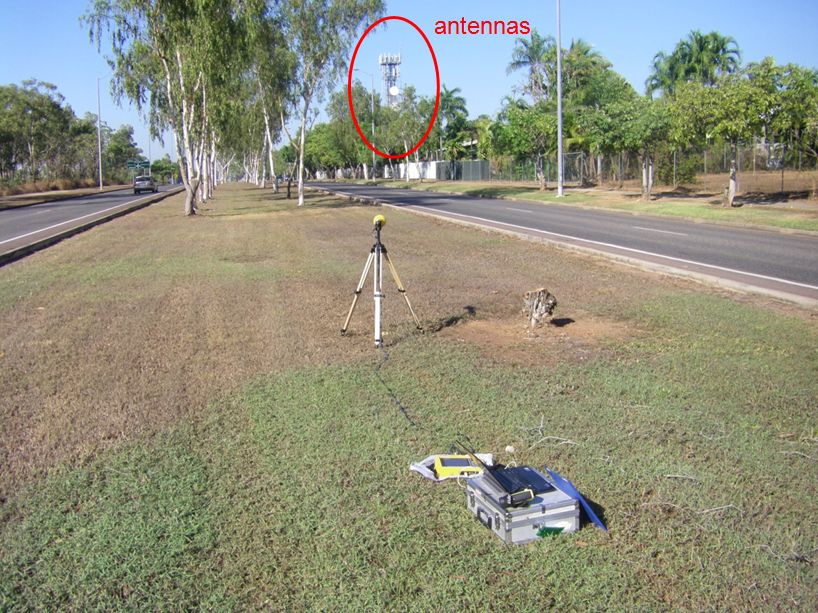

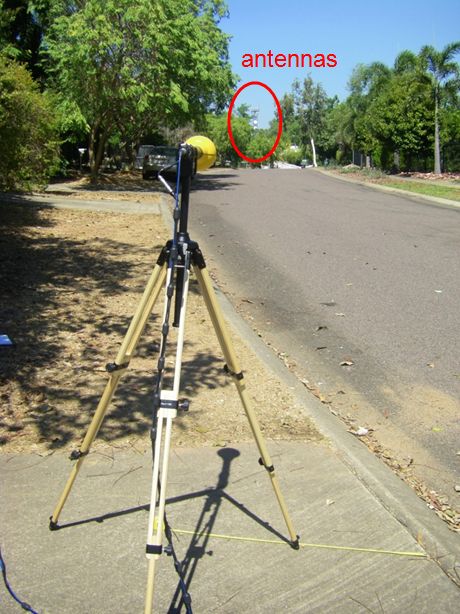

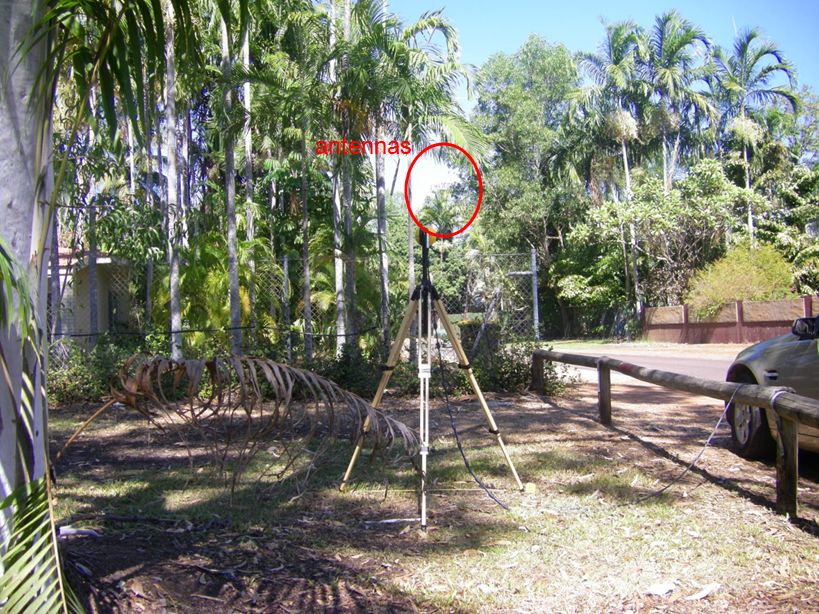

Measurement locations - Click to enlarge



Footnote:

For this base station the measurement of demodulated pilot signals of the spread-spectrum technologies (CDMA, UMTS or WCDMA) was not performed. Extrapolation was done assuming that only the pilot signal was present when in fact a mixture of pilot and traffic signals contributed to the measured value. This assumption leads to over-estimates of the actual RF EME levels, typically by a factor of 2 to 5.

Further details may be obtained in the ARPANSA commentary on base station RF survey results.
