ARPANSA - Australian Radiation Protection and Nuclear Safety Agency

Maximum level of RF EME from this base station

The maximum level of RF EME from this base station (full power) determined from measurements at locations around this site was 0.132% of the ARPANSA Standard limit for public exposure.

Highest level of RF EME actually measured

The highest level of RF EME from all nearby base stations actually measured at a location near this site was 0.009% of the ARPANSA Standard limit for public exposure.

The Environmental EME Report for this site (dated 26/04/2006) lists the maximum EME level as 1.69% of the ARPANSA Standard limit for public exposure.

Base station address: 147 Goodwood Road, Goodwood SA (See in Google maps). These measurements were taken on Monday 27 August 2007

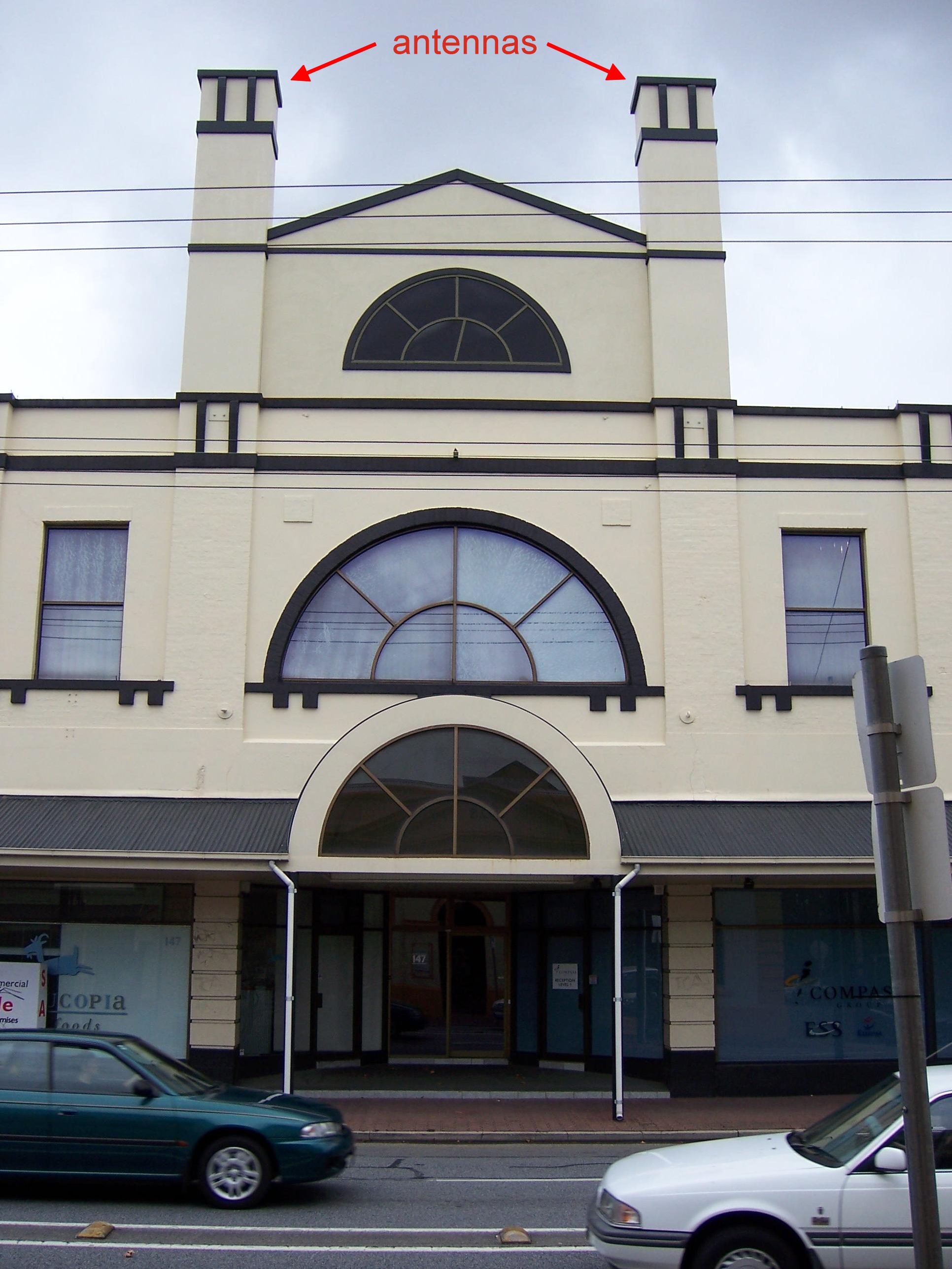

Note that the antennas are located out of sight within the building façade.

Details of this installation are available by visiting the
Mobile Carriers Forum (MCF) - Radio Frequency National Site Archive website. Login as a guest and search for site number 5034002.

Detailed Results: RF EME from this base station

This table lists the range of RF EME values from the services present at this site measured at the location with the highest average value. An explanation of this table is here.

Operator/Service	Location	Low Power [mW/m2]	Full Power [mW/m2]	Limit [mW/m2]	Percentage of Limit[%]
Telstra WCDMA	2	0.050 - 0.277	0.585 - 3.232	4250	0.014 - 0.076
Telstra GSM900	2	0.572 - 1.283	1.143 - 2.566	4500	0.025 - 0.057
Combined	2	0.681 - 1.560	2.243 - 5.746		0.051 - 0.132



Detailed Results: RF EME from all nearby base stations

This table lists the range of RF EME values for each of the mobile phone downlink bands measured at location 1. An explanation of this table is here.

Frequency Band	Services	Measured [mW/m2]	Limit [mW/m2]	Percentage of Limit[%]
870 - 890 MHz	CDMA & WCDMA	0.099 - 0.378	4250	0.002 - 0.009
935 - 960 MHz	GSM900	0.620 - 2.060	4500	0.014 - 0.046
1805 - 1880 MHz	GSM1800	<0.001 - 0.002	9000	<0.001
2100 - 2170 MHz	UMTS	<0.001	10000	<0.001
Combined		0.795 - 1.534		0.002 - 0.009

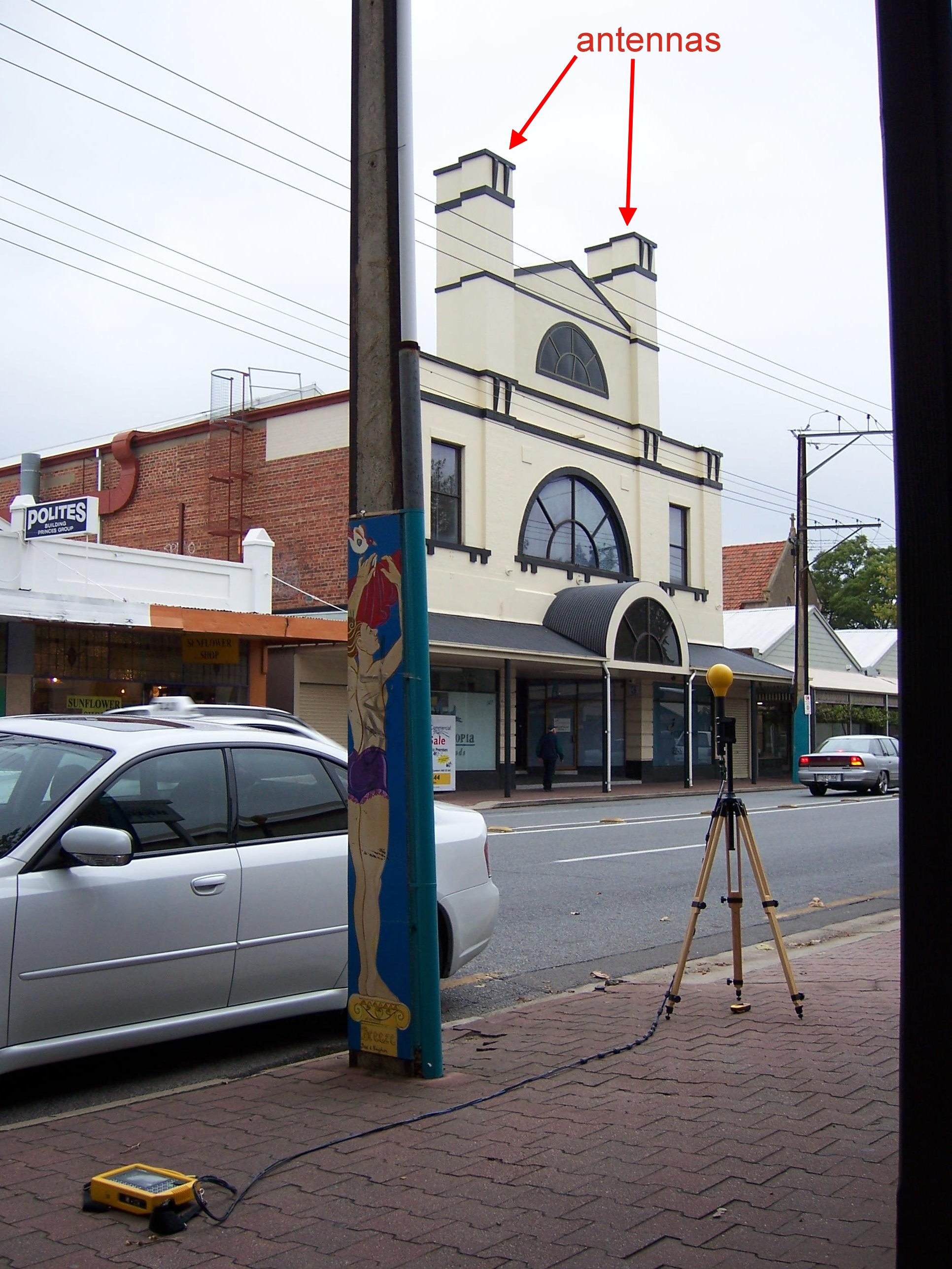

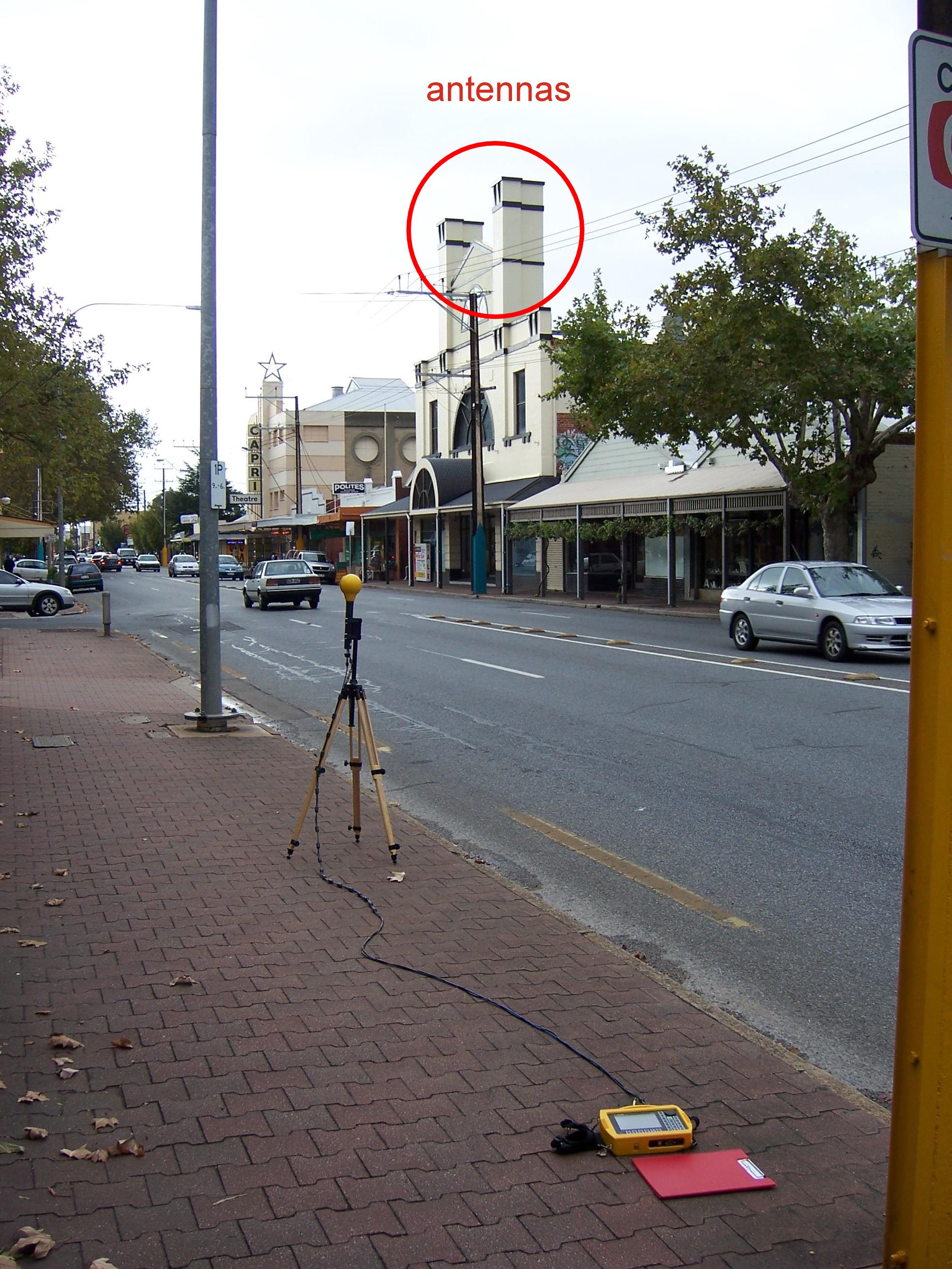

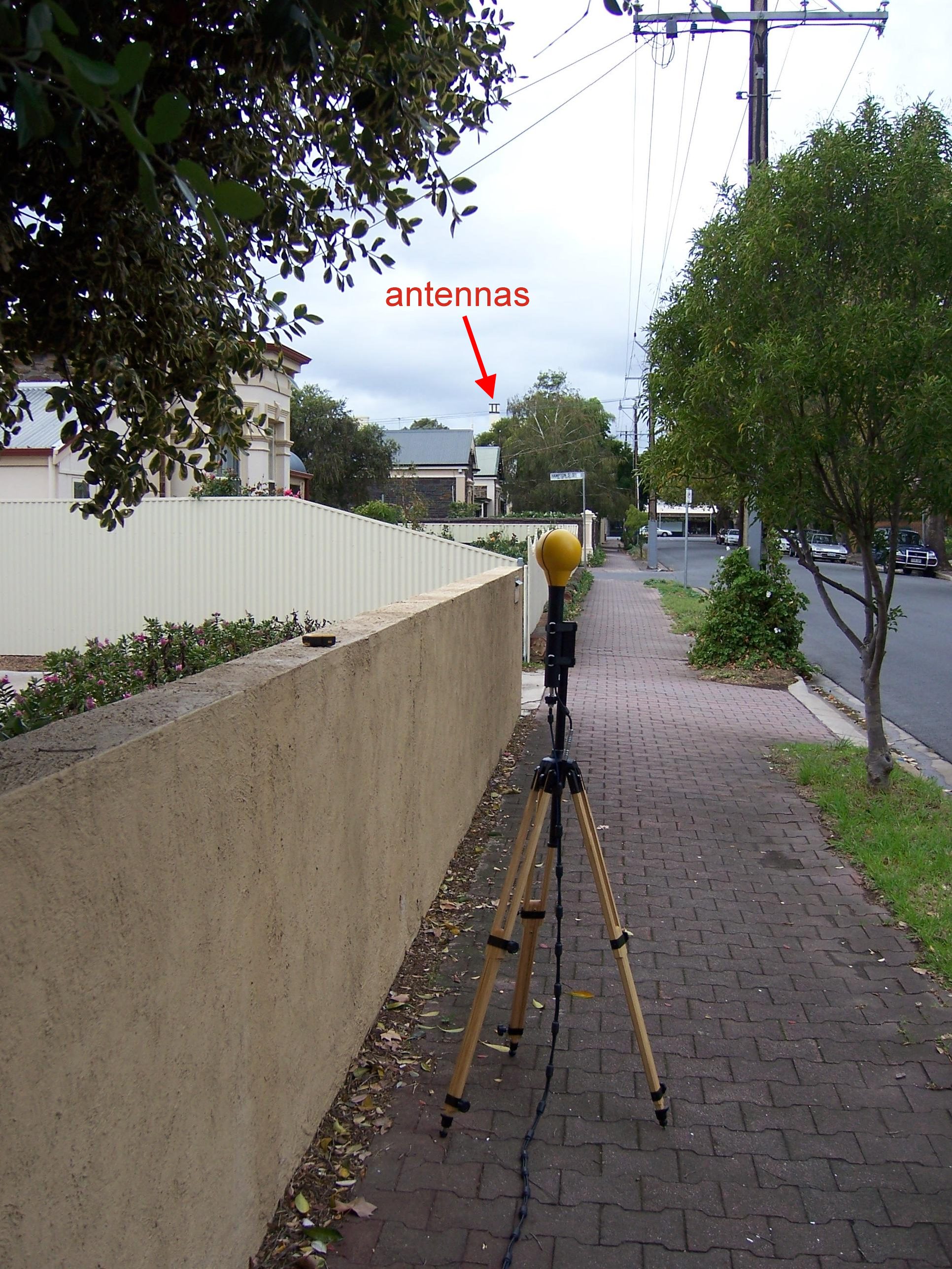

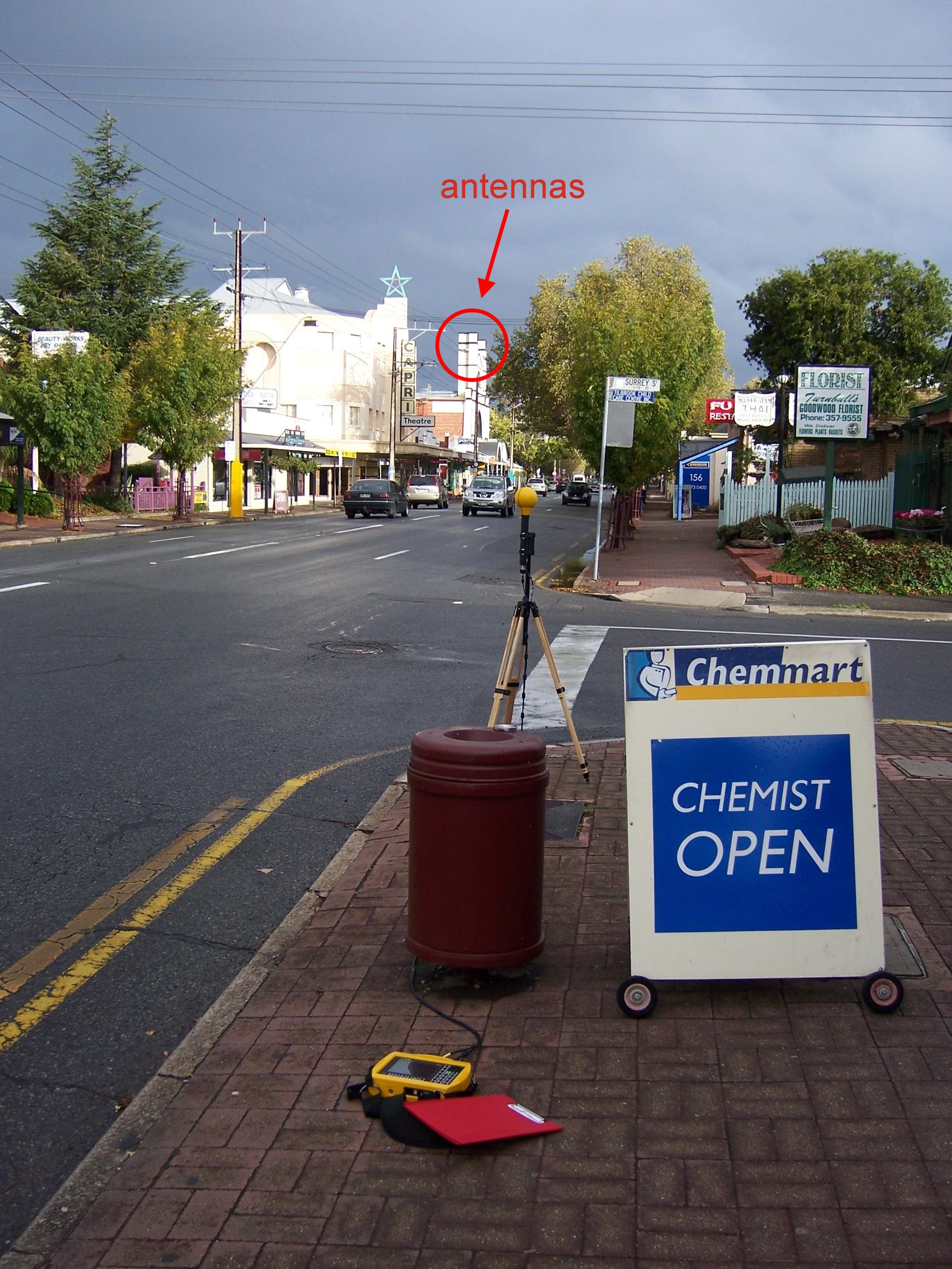

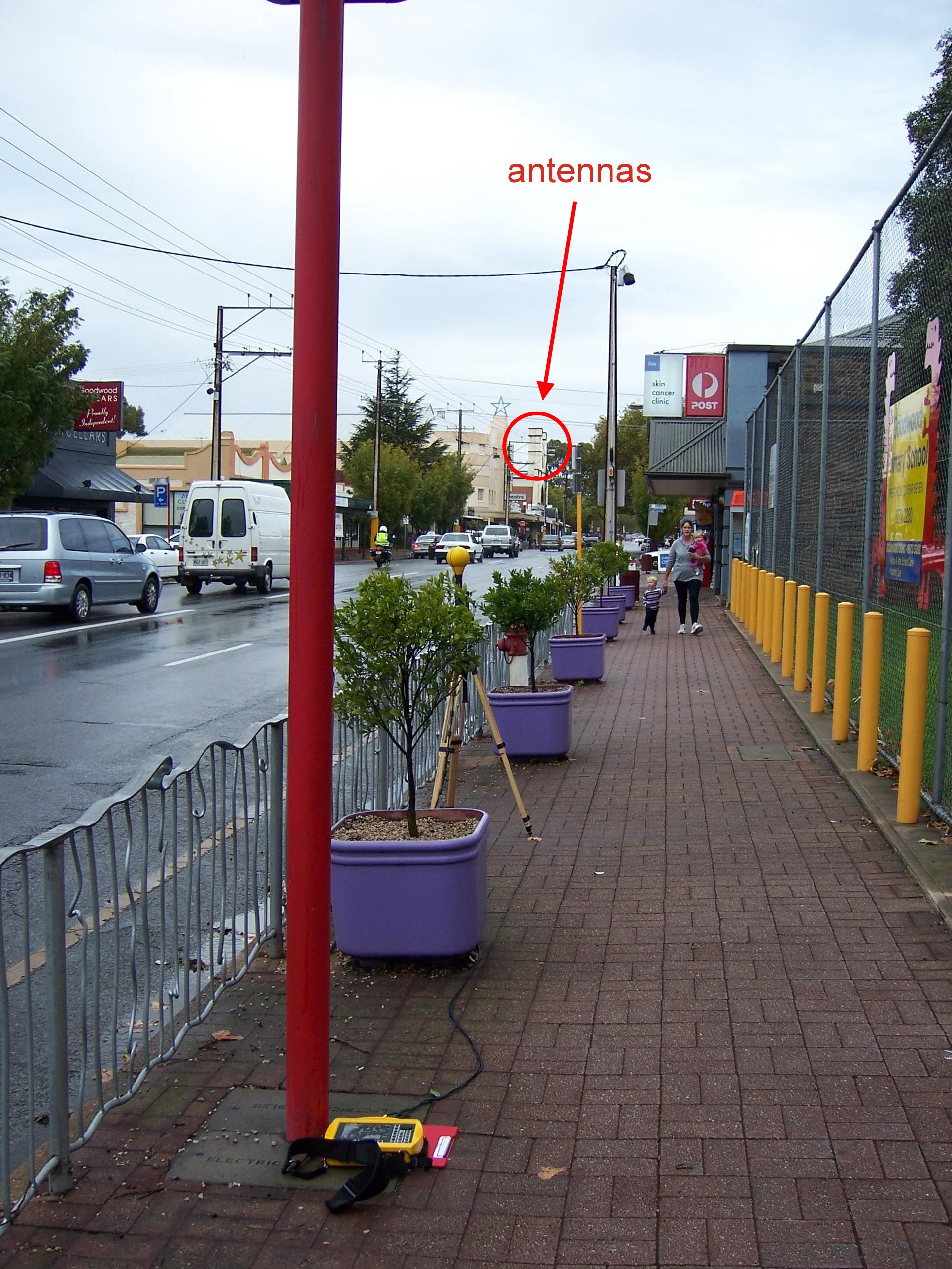

Measurement locations - Click to enlarge
