Linac (medical linear accelerator)

A medical linear accelerator (linac) was installed in 2009. The linac is of the type used to deliver radiotherapy and therefore allows ARPANSA to calibrate therapy dosemeters at megavoltage beam qualities close to those used by radiotherapy treatment centres.

The medical standards linac is an Elekta Synergy capable of delivering 3 photon energies (6 MV, 10 MV and 18 MV) and ten electron beams between 4 and 22 MeV. Different photon energies are available by changing filters in the head but these beams are not currently commissioned.

The linac was upgraded with a Patient Support System (patient table) in 2010 and a kilovoltage imager was added in 2012. The linac has the MLCi2 beam shaping device and a portal imager. The Record and Verify system MOSAIQ is installed and can be used to deliver radiotherapy treatment plans developed on similar linacs in local hospitals.

The Elekta Synergy medical standards linac at ARPANSA
The Elekta Synergy medical standards linac at ARPANSA

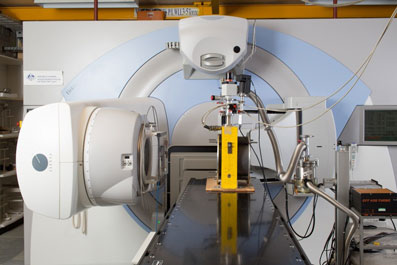

The primary standard graphite calorimeter (graphite block in the yellow wooden frame) mounted in front of the medical standards linac
The primary standard graphite calorimeter (graphite block in the yellow wooden frame) mounted in front of the medical standards linac.

Research Opportunities

The medical standards accelerator is available for research use where the benefit of the research is improved medical use of radiation. Please contact the megavoltage dosimetry team to discuss your project.

For further information regarding radiotherapy services, please contact:

Dr Duncan Butler
Section Manager – Radiotherapy
ARPANSA
619 Lower Plenty Road
Yallambie VIC 3085

Ph: +61 3 9433 2274
Email: duncan.butleratarpansa.gov.au
